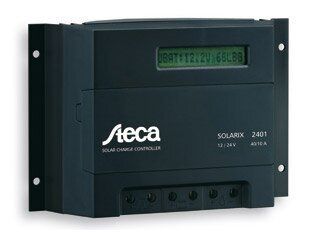

Charge Controllers Steca Solarix 2401 40А/24V

Controller Steca Solarix 2401- modified version Solarix Omega controllers 30 A, operating in the range up to 40 A current solar modules present in the solution of 24 V. Load currents are limited to 10 A. The charging process based on the tiered voltage which can be changed individually total 4 -mya buttons located under the outer cover of the controller.

Properties device
* voltage regulation
* PWM charge current
* 3 modes charge
* Automatic reconnection load
* Temperature compensation
* grounding positive contact
* (or) grounding the negative terminal at one terminal
* Setting all parameters necessary pushbuttons 4
* Appearance a temperature sensor (optional)

Electronic protection
* high voltage protection
* protection against low voltage
* protect the battery overcharge
* protection against deep battery discharge
* Protection against reverse polarity connection of the solar module
* Protection against reverse polarity of the battery connections
* Reverse polarity of load connections
* Protection from load short-circuit protection
* protection against short-solar module
* Temperature protection
* overvoltage protection
* varistor lightning protection
* protection against leakage voltage to the night-time solar module

Indication
* Single-line LCD displays battery voltage, and all currents

charge controller Solarix 2401
voltage -. 12 (24)
maximum power - 48W
own current consumption - 14 mA
Power module - 40 A
Maximum load current - 10 A voltage
charge closure - 13,7 V (27,4 V)
Raise the charge voltage (factory) - 14.4 (28.8)
charge compensation (factory) - 14.7 V (29,4 V)
Reclosing (LVR) (default ) - 12.6 (25.2)
Protection Reset (LVD) (setting) - 11.1 (22.2 in)
ambient temperature - -10 ° C ... +60 ° C
Terminals - 16 mm 2 / 25 mm 2 - 6/4 AWG
protection - IP 32
size - 187 x 128 x 49 mm
Weight - 550 g
