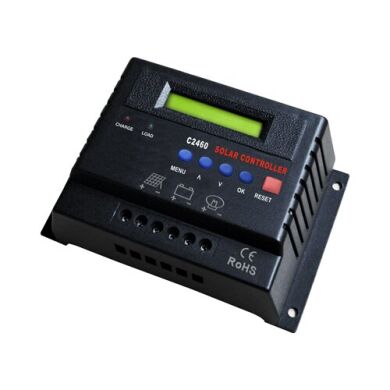

Charge Controllers WS-C2460 40A 12V/24V

The charge controller WELLSEE WS-C2460 40A 12V / 24V.
charge controller WELLSEE Series WS-C2460 40A applies in solar photovoltaic systems. The series controllers WS-C adds some protection functions, to increase efficiency and safe operation. Controllers WS-C2460 40A apply to all types of photoelectric panels and various types of batteries, microprocessor-based controller, it is a PWM (Pulse Width Modulation). WS-C2460 optimized for the charge gel and AGM batteries. . It provides a quick charge from the PV. Automatic detection of battery voltage 12/24 or 48 V. The ability to manually set thresholds and charge batteries rozryada

Specifications:

The rated voltage - 12V / 24V
. automatic voltage detection
Max. load current, A - 40
Input voltage range -?? 12V system 20V / 24V system 40V
length <= 1 m drop charge cycle - 0.25 V
length <= 1 m Falling discharge cycle - 0.05
shutdown battery voltage - 13.7 / 27.4V
Turning when battery voltage - 10.5V / 21V
Temperature compensation - -3 mV / ° C / cell
current consumption without load - <= 30 mA
ambient temperature - -25 ° C --- +55 ° C
Maximum wire diameter - 8 mm2
