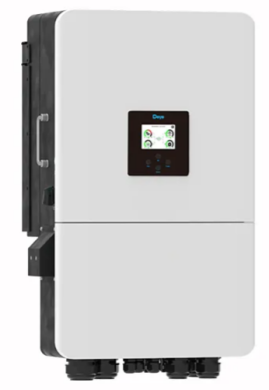

Hybrid inverter DEYE SUN-10K-SG02LP1-EU-AM3

Deye Sun-10k-SG02LP1 48V — modern single-phase hybrid inverter for efficient conversion of solar energy into AC power. Designed for residential, commercial, and industrial applications, it works with solar panels, batteries, and generators, providing uninterrupted power supply and maximum efficiency with three MPPT trackers.

Features:

• 3 MPPT trackers for panels on different planes

• Separate input for diesel generator for additional energy security

• IP65 protection and color touchscreen LCD

• Parallel connection up to 16 inverters for system scalability

• Supports multiple battery banks

• Automatic generator switchover at critically low battery

• Pure sine wave output for safe operation of household and industrial devices

Applications:
Perfect for homes, commercial, and industrial solar systems requiring efficient energy conversion and optimal use of green tariffs.

Specifications

• Rated Power: 10,000 W

• Peak Power: 11,000 W

• Battery Output Voltage: 48 V

• Pure sine wave output

• Efficiency: 97.6%

• 3 MPPT trackers

• Max PV input power: 13 kW

• PV start voltage: 125 V

• Max charge/discharge current: 220 A

• Dimensions: 670 × 420 × 233 mm

• Weight: 32 kg

• Parallel connection: up to 16 inverters
