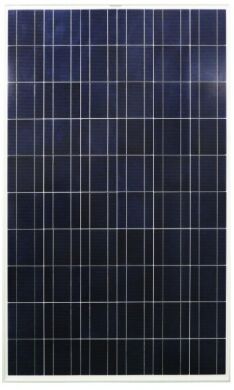

Battery Solar BYD 230P6-30 poly

Photovoltaic module BYD 230P6-30
Properties photo module BYD 230P6-30:
- high efficiency;
- excellent visual performance;
- stable output voltage DC;
- easy installation.

Applications:
- rendition of "roof" for private homes and cottages,
- supply system with connection to the general power grid,
- isolated power supply system.

Electrical characteristics at standard test:
All data are given for the standard measurement conditions: radiation power = 1000 W / m2; thickness atmosphere = AM 1,5; T = 25 ° C

Module Type:. BYD 230P6-30

Electrical characteristics:
circuit voltage (Voc): 36,83V
The optimum voltage (Vm): 29,0V
short circuit current (Isc): 8.52A
optimum operating current (Im): 7.93A
Maximum power (Wp): 230W

temperature coefficients:
Nominal operating temperature 45 C ± 2 C
temperature short-circuit current ratio of 0.045% / C
temperature coefficient of the open circuit voltage - 0.34% / C < br /> Temperature coefficient at the maximum power - 0.47% / C
tolerance of ± 3% power

Specification:
type photocell - Polycrystalline silicon
Dimensions photocell - 156 x 156 mm
number of photocells in the module - 60 (6x10)
module size - 1 mm 640h992h50
unit weight - 20,5 kg
thickness frontal tempered glass - 3 2 mm
Frame - Anodized aluminum alloy
protection - IP65
cross-sectional area of ​​the cable - 4 mm2
Cable Length - mm
2x1000 Number of modules on the pallet - 20 pieces.
number of pallets per container - 12 pieces.
number of modules in a container - 240 pcs.

Warranty: 10 years to provide power for at least 90%; 25 years is not less than 80%
